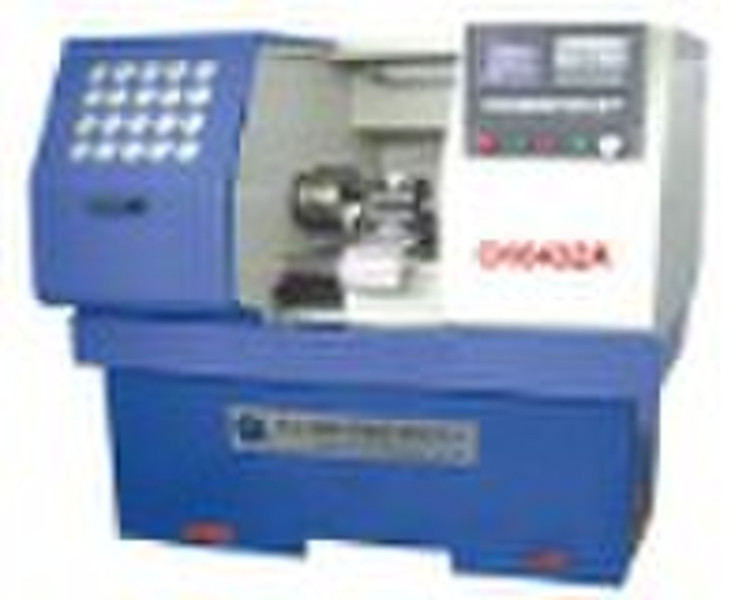

CK6432A cnc lahte cnc machine
Baoling Su
Contact person
Basic Information
Items Specifications Max. swim over bed Φ320mm Max.swimovercarriage Φ160mm Max.lengthof work piece 500/700/1000mm Range of spindle speed 100-2500rpm Spindle bore Φ38mm Taper of spindle bore MT5 aper of spindle outside D4 stations of tool carrier 4/6 or gang-type tool carrier Max.size of tool post 18×18 Min.settingunit of motor (stepper/servo) (Z)cross 0.001mm (X)long 0.001mm Moving speed of post (stepper/servo) (Z)cross 3m/7.6m/min (X)long 3m/4m/min Taper of tailstock quill MT3 Max. range of tailstock quill 100mm Motor power 2.2KW Packing size (mm) 1000/2050×2275×950×1680 Net weight 850/950/1100kg quality of our cnc lathefine and pricelow cnc machine cnc lathes cnc lathe machine
Delivery terms and packaging
Packaging Detail: packed in wooden cases Delivery Detail: about a month
Port: qingdao
Payment term
Documents Against Payment
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
